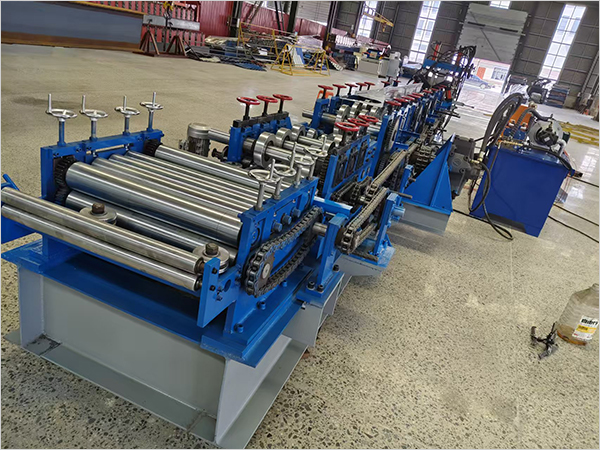

C/Z-shaped Steel Forming MachineIt Is A Core Automated Forming Equipment In The Field Of Steel Structure Construction, Designed For Mass Production Of C-shaped And Z-shaped Cold-formed Steel. With High-precision Cold Rolling Forming Technology As The Core, It Can Process Various Types Of Color Steel C/Z-shaped Steel, Galvanized C/Z-shaped Steel, Etc., Replacing Traditional Welding And Cutting Processes. It Is Widely Used In Steel Structure Factories, Warehouses, Light Steel Villas, Support Structures And Other Projects. It Is A Key Supporting Equipment For Large-scale Production Of Steel Structure Components, With High Efficiency And Practicality.
The Equipment Core Is Divided Into Two Categories: Fully Automatic C/Z Steel Integrated Machine (mainstream) And Single Machine C/Z Steel Forming Machine. According To The Forming Function, It Can Be Divided Into C Steel Forming Machine, Z Steel Forming Machine, And C/Z Integrated Forming Machine. The Entire Process Adopts PLC+HMI Integrated Control System, Integrating Core Processes Such As Unwinding, Leveling, Punching, Forming, Cutting, And Palletizing. Only One Person Is Needed For Stable Operation. Its Workflow Is Coherent And Efficient, With Strip Steel (color Steel Strip, Galvanized Strip) Uncoiling, Bi-directional Leveling, Removing Strip Steel Stress, And Then Precision Punching Through Servo (processing Installation Holes As Needed), Cold Bending Into C-shaped Or Z-shaped Sections Through Multiple High-precision Rollers, And Finally Servo Fixed Length Shearing To Complete Automatic Palletizing Of Finished Products. The Entire Process Is Automated, With No Waste, Low Loss, And No Need For Subsequent Secondary Processing.
The Core Advantages Of This Equipment Are Outstanding, With High Forming Accuracy. It Adopts High-precision Rollers And Closed-loop Servo Control, And The Size Error Of The Steel Can Be Controlled Within ± 0.2mm. The Cross Section Is Regular, The Wall Thickness Is Uniform, The Splicing Is Tight, And The Load-bearing Performance Is Excellent; High Production Efficiency, The Operating Speed Of Conventional Models Can Reach 8-20 Meters Per Minute, And The Daily Production Capacity Can Reach Several Kilometers, Which Is More Than 5 Times Higher Than Traditional Welding Processing Efficiency. Wide Adaptability, Can Quickly Switch Between C-type And Z-type Specifications By Changing Molds According To Engineering Needs, Adjustable Range Covers 80-300mm, Supports Customized Cross-sectional Dimensions, And Adapts To Steel Structure Projects With Different Spans And Load-bearing Requirements; At The Same Time, It Has The Characteristics Of Energy Conservation, Environmental Protection, And Easy Maintenance. It Adopts A Servo Drive System, With Low Energy Consumption, Low Noise, And No Pollutant Emissions; The Rolling Mill Is Treated With 45 # Steel Plated With Hard Chrome, Which Is Wear-resistant And Durable, With A Service Life Of Over 10 Years. Daily Maintenance Only Requires Regular Inspection Of The Rolling Mill, Transmission Components, And Punching Device, With Low Maintenance Costs And Self Diagnostic Function For Timely Troubleshooting.
Its Application Scenarios Cover Various Types Of Steel Structure Engineering, And C-shaped Steel Is Mostly Used For Steel Structure Purlins, Brackets, And Beams, Suitable For Roof And Wall Support In Factories And Warehouses; Z-shaped Steel Is Commonly Used For Purlins In Large-span Steel Structure Buildings, Which Can Achieve Lap Splicing And Improve Overall Load-bearing Stability. It Is Widely Used In Light Steel Villas, Large Factories, Logistics Warehouses, Etc. Equipment Can Significantly Reduce Labor Costs And Processing Cycles, Minimize Human Errors In Steel Processing, Ensure The Quality Of Steel Structure Engineering, And Achieve Standardized And Large-scale Production Of C/Z Steel, Adapting To The Needs Of Modern Steel Structure Construction Industrialization. It Is The Preferred Equipment For Upgrading Steel Structure Engineering.
