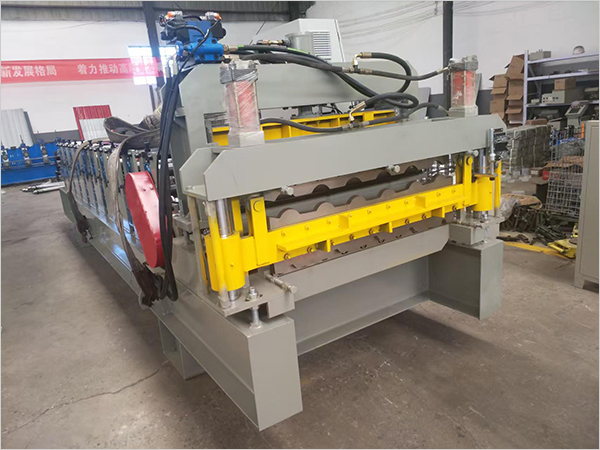

Bamboo Glazed Tile Molding MachineIt Is A Specialized Cold Bending Equipment Used For Producing "bamboo Shaped" Glazed Tiles. It Uses Metal Coils Such As Color Coated Steel Plates (color Coated Steel Plates) Or Galvanized Steel Plates, Which Are Continuously Rolled By Multiple Passes Of Rollers, To Form Roof Panels With An Antique Glazed Tile Appearance And Unique "bamboo Like" Horizontal Ripples In One Go.
The Device Mainly Consists Of The Following Core Systems:
1. Material Release System: Usually Equipped With A Hydraulic Expansion And Contraction Unwinding Machine, Carrying Raw Steel Coils, And Can Be Equipped With An Automatic Centering Device To Ensure Smooth Entry Of The Sheet Metal.
2. Molding Host: This Is The Core Of The Equipment. It Consists Of A Set Of Designed Forming Rollers (usually 12-20 Passes) And A High-strength Frame. The Rolling Mill Gradually Bends The Flat Metal Strip Into A Three-dimensional Section Of Bamboo Glazed Tile According To The Preset Mold Shape. Its Uniqueness Lies In Its Ability To Not Only Form Vertical Peaks And Valleys, But Also To Suppress Undulating, Bamboo Like Decorative Patterns Horizontally, With A Strong Sense Of Three Dimensionality And A Classical And Beautiful Decorative Effect.
3. Hydraulic Cutting System: After The Sheet Reaches The Preset Length, It Is Cut To A Fixed Length By A Hydraulic Driven Tool, With A Smooth And Burr Free Cut.
4. Electrical Control System: Using Programmable Logic Controller As The Control Center, Combined With Human-machine Interface Touch Screen. Operators Can Easily Set Parameters Such As Production Speed, Cutting Length, And Counting Values, And Monitor The Operating Status To Achieve Automated And Continuous Production.
5. Discharge Rack: It Receives And Guides The Smooth Output And Stacking Of Finished Tiles After Molding.
The Production Process Of Bamboo Glazed Tile Press Machine Is Highly Automated: Metal Coil On The Machine → Automatic Unwinding And Introduction Into The Forming System → Gradually Cold Bending Forming Through Multiple Rollers → Online Fixed Length Hydraulic Cutting → Finished Product Output. Its Core Advantages Lie In:
High Quality: Continuous Roll Forming, Smooth Operation, Adjustable Speed (usually 10-30 Meters Per Minute), High Dimensional Accuracy And Good Consistency Of The Product.
• Combination Of Strength And Decoration: The Formed Tiles Not Only Inherit The Lightweight, High-strength, And Corrosion-resistant Characteristics Of Metal Sheets, But Also Greatly Enhance The Three-dimensional Sense And Artistic Effect Of Buildings With Their Unique "bamboo Joint" Shape And Antique Appearance. They Are Widely Used In Antique Or Improved Building Roofs Such As Villas, Resorts, Temples, Etc.
Strong Material Adaptability: It Can Process Various Materials Such As Color Coated Plates, Aluminum Zinc Coated Plates, Stainless Steel Plates, Etc., To Meet Different Climate Environments And Durability Requirements.
