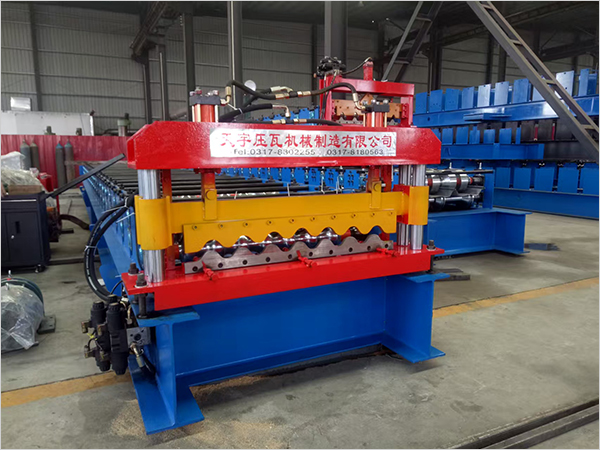

Water Ripple Cold Bending EquipmentIt Is An Automated Equipment For Professional Roll Forming Of Metal Water Ripple Plates, Also Known As Water Ripple Tile Press, Suitable For Color Coated Plates, Galvanized Plates, Stainless Steel Plates, Etc. (thickness 0.2-0.8mm), Widely Used In Steel Structure Roofs, Walls, Enclosures, And Decoration Projects.
The Equipment Consists Of A Feeding Rack, Guided Feeding, Forming Host, Hydraulic Shearing, And PLC Control Cabinet. The Forming Host Is Equipped With Multiple Sets Of Precision Rolling Rolls (spindle Diameter 70-75mm, 45 # Steel, Roll Coated With Hard Chrome Polishing), Which Are Gradually Pressed Out With Uniform Water Ripples Through Continuous Cold Bending. The Wave Height, Wave Spacing, And Effective Width (such As 850mm, 1143mm) Can Be Customized.
The Whole Machine Is Fully Controlled By PLC, With Touch Screen Setting For Length And Quantity, Automatic Feeding, Forming, And Cutting To Length. The Production Speed Is 10-18 Meters/minute, And The Formed Board Size Is Precise, The Board Surface Is Flat, And The Ripples Are Uniform. The Blade Is Made Of Cr12MoV, Which Is Wear-resistant And Durable, With A Shear Life Of Over One Million Times.
The Equipment Has A Stable Structure, Stable Operation, Easy Operation, And Low Maintenance. The Finished Board Is Resistant To Pressure, Has Good Drainage, Is Beautiful And Durable, And Is Suitable For Scenarios Such As Factories, Warehouses, Venues, And Activity Board Houses. It Is The Core Equipment For Efficient Production Of Steel Structure Building Materials
