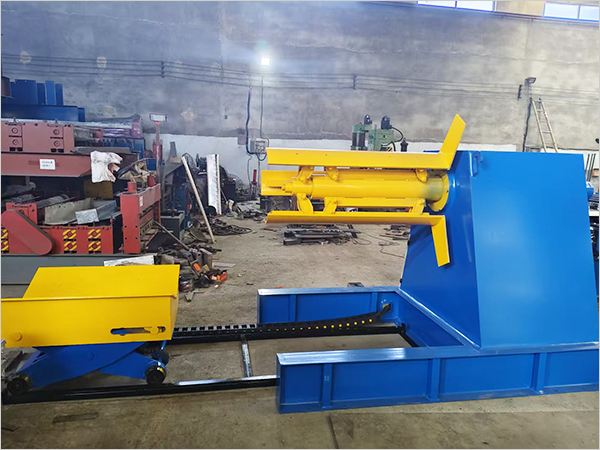

Fully Automatic Winding MachineIt Is The Core Equipment At The End Of The Coil Processing Production Line (such As Color Coating, Galvanizing, Film, Paper And Other Industries), Mainly Used To Roll Continuously Produced Strips Into Neat And Compact Finished Coils At High Speed And High Precision. Its Characteristic Is Highly Integrated Automation, Which Can Achieve Unmanned Operation Of The Entire Process From Belt Pulling, Coiling, Pressing, Length Counting, Cutting To Unwinding, Greatly Improving Production Efficiency And Finished Product Quality.
This Equipment Usually Consists Of A Winding Host, Hydraulic Or Servo Drive System, Automatic Edge Correction Device, Pressing Arm Mechanism, Automatic Cutting And Overlapping Unit, Finished Roll Lifting Saddle, And Central Control System. During Operation, The Strip Is Precisely Wound Onto A Drum Under Constant Tension Control. The Automatic Edge Correction System Ensures That The Edges Of The Coil Are Neat And Consistent. When The Winding Reaches The Preset Length Or Diameter, The Equipment Automatically Completes: 1) Pre Paste The Guide Tape On The New Drum; 2) Accurately Cutting The Running Strip; 3) Quickly Overlap The Head Of The Strip To The New Drum; 4) Remove The Completed Finished Roll And Immediately Start A New Round Of Coiling To Achieve Uninterrupted Continuous Production.
The Core Of Its Technology Lies In High-precision Synchronous Control And Intelligent Management. Adopting Advanced Servo Drive And Digital Tension Control System To Ensure Smooth Winding Process, Tight Inside And Loose Outside Of The Coil, And Uniform Structure. The Control System Integrates Programmable Logic Controllers And Human-machine Interfaces, Which Can Preset Various Coiling Process Parameters And Monitor Key Data Such As Tension, Pressure, And Speed In Real Time. In Terms Of Safety, It Is Equipped With Comprehensive Multi-point Emergency Stop, Safety Light Curtain, And Interlock Protection.
Compared With Semi-automatic Or Manual Rewinding Machines, Fully Automatic Models Significantly Reduce Manual Operations, Avoiding Efficiency Fluctuations And Quality Differences Caused By Human Factors. It Ensures The Consistency Of Length, Diameter, And Roll Shape Of Each Roll Of Product Through Precise Automation Programs, While Reducing The Labor Intensity And Safety Hazards Of Operators. The Fully Automatic Winding Machine Is A Key Equipment For Achieving Intelligent And Continuous Post-processing Of Coil Production, Which Plays A Decisive Role In Improving The Production Rhythm Of The Entire Line, Ensuring Product Quality, And Reducing Comprehensive Costs.
