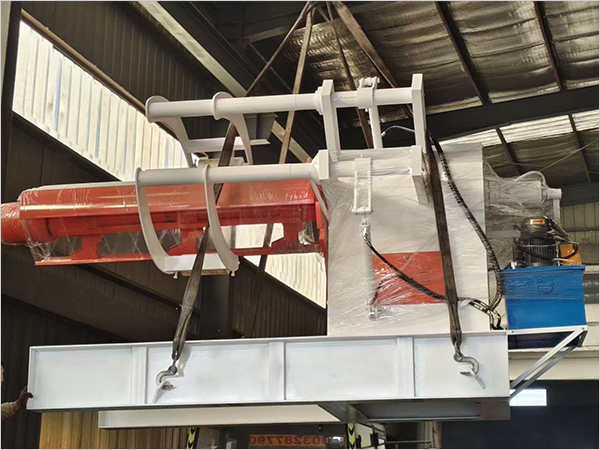

Open Coil Feeding RackIt Is The Core Supporting Equipment In The Coil Processing Industry, Mainly Used For Automatic Unwinding, Feeding And Discharging Of Coil Materials Such As Color Coated Plates, Galvanized Plates, Stainless Steel Plates, Etc. It Is Widely Used In Production Scenarios Such As Cold Bending, Color Steel Tile Processing, Metal Stamping, And Sheet Cutting, And Is The Primary Link To Achieve Automated Processing Of Coil Materials.
The Equipment Adopts High-quality Welded Steel Base, With A Stable Structure And Strong Load-bearing Capacity. It Can Be Adapted To Roll Materials With Specifications Of Φ 500- Φ 1500mm, With A Load-bearing Range Of 1-10 Tons, Meeting The Processing Needs Of Different Thicknesses (0.2-1.2mm) Of Roll Materials. The Core Configuration Includes A Hydraulic Tensioning Mechanism, An Automatic Correction Device, And A Variable Frequency Speed Control System, Which Can Achieve Smooth Unwinding And Precise Feeding Of The Coil Material.
Its Core Features Are Smooth Unwinding And Precise Feeding. The Coil Is Fixed By A Hydraulic Tensioning Device To Avoid Looseness And Deviation During Unwinding. The Automatic Correction Accuracy Reaches ± 1mm, Effectively Preventing Scratches And Creases On The Board. The Equipment Can Be Manually Or Automatically Controlled By PLC, With Easy Operation And Adjustable Feeding Speed As Needed, Adapting To The Rhythm Of Subsequent Processing Equipment And Greatly Reducing Manual Intervention.
The Equipment Is Equipped With Safety Barriers And Emergency Stop Buttons To Eliminate Safety Hazards, And Has A Compact Structure, Small Footprint, Easy Maintenance, And Low Failure Rate. As The Pre Core Equipment For Coil Processing, It Can Improve Production Efficiency And Ensure Processing Accuracy, And Is The Equipment For Large-scale And Automated Coil Processing Production Lines.
